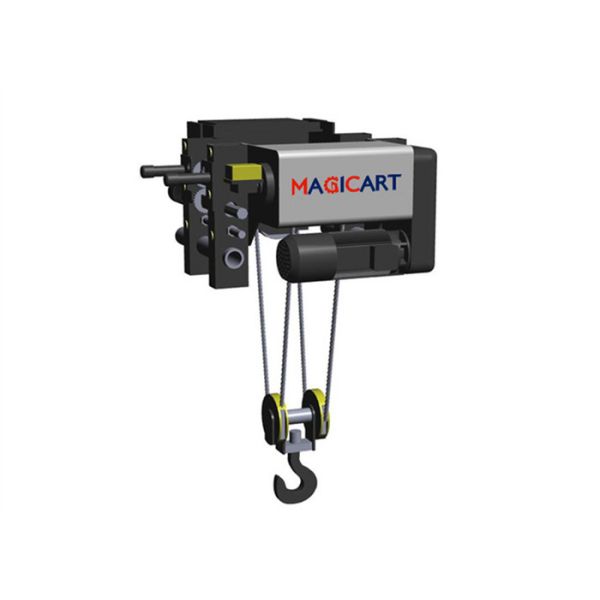

High Quality Speed 0.5t To 12.5t Electric Wire Rope Hoist For Single Girder Crane
Product Description
The electric hoist has a compact structure, and the electric hoist whose motor axis is perpendicular to the axis of the drum adopts a worm gear transmission device. Its disadvantages are: large length, large width, rough structure, low mechanical efficiency, and difficult processing. The hydraulic system is dual-controlled, and the pressure can be precisely controlled by the overflow regulating valve and the magnetic contact pressure gauge. The electrical control department adopts low voltage control to increase the safety of the control system.
Drawing and Specification
| Capacity (t) | Lifting Height (mm) | Duty Class | Lifting Speed (m/min) | Travel Speed (m/min) | Rail Width-b (mm) | Hoist Length-L (mm) | Up Limit-h (mm) | Max Wheel Load (KN) | Weight (kg) |
| 1.6 | 6,000 | 2m/M5 | 1.6/10 | 2~20 | 200~300 | 930 | 400 | 6.1 | 300 |
| 9,000 | 1100 | 400 | 6.2 | 335 |
| 12,000 | 1270 | 400 | 6.3 | 370 |
| 2.5 | 6,000 | 2m/M5 | 0.8/5.0 | 2~20 | 200~350 | 1180 | 430 | 9.1 | 315 |
| 9,000 | 1400 | 430 | 9.2 | 350 |
| 12,000 | 1620 | 430 | 9.3 | 385 |
| 3.2 | 6,000 | 2m/M5 | 0.8/5.0 | 2~20 | 250~350 | 1180 | 450 | 11.5 | 335 |
| 9,000 | 1400 | 450 | 11.6 | 370 |
| 12,000 | 1620 | 450 | 11.7 | 405 |
| 6.3 | 6,000 | 2m/M5 | 0.8/5.0 | 2~20 | 300~450 | 1170 | 500 | 22 | 400 |
| 9,000 | 1400 | 500 | 22.1 | 450 |
| 12,000 | 1630 | 500 | 22.2 | 500 |
| 8.0 | 6,000 | 2m/M5 | 0.8/5.0 | 2~20 | 300~450 | 1120 | 650 | 28 | 580 |
| 9,000 | 1290 | 650 | 28.1 | 610 |
| 12,000 | 1460 | 650 | 28.2 | 640 |
| 10.0 | 6,000 | 2m/M5 | 0.8/5.0 | 2~20 | 300~450 | 1120 | 650 | 34.7 | 580 |
| 9,000 | 1290 | 650 | 34.8 | 610 |
| 12,000 | 1460 | 650 | 34.9 | 640 |
| 10.0 | 6,000 | 2m/M5 | 0.66/4.0 | 2~20 | 300~450 | 1140 | 700 | 34.7 | 650 |
| 9,000 | 1320 | 700 | 34.8 | 690 |
| 12,000 | 1500 | 700 | 34.9 | 730 |
| 12.5 | 6,000 | 2m/M5 | 0.66/4.0 | 2~20 | 300~500 | 1140 | 700 | 43.3 | 660 |
| 9,000 | 1320 | 700 | 43.4 | 700 |
| 12,000 | 1500 | 700 | 43.5 | 740 |
Application
Used for lifing heavy goods and installing equipment,in the workshops of machinery factories and repair shops.
Used for lifing and stacking materials in material warehouse and goods yards.
Used for hoisting prefabricates and cement pipes in construction industry.
Used for lifting heavy goods in the warehose of light textile factories and workshop of hospitals,shops,and food products factories.
Used for lifting heavy goods at the wharfs.
Product Details
FAQ
1.Is your product customized?
Thanks for your question. Yes, because the working condition are different, all our products are customized depending on detail requirement! So if you give us more information about the lift capacity, span, lift height, power source and other specials, we will give you a very quick and accurate quotation.
2. What’s the information should I provide when inquiry?
Thanks for your question. The more information you provide, the accurate solution we can prepare for you! The information such as the lift capacity, span, lift height, power source or other specials you give us will be more appreciated.
3. How many operating methods for my selection?
Thanks for your question. The standard operating methods we provide is pendent controller with push buttons. Meanwhile, we can also provide the remote control with push buttons and the cabin (space capsule seat) control with joystick. You can choose any of them, just tell us!
4. What’s the max lifting capacity of the crane?
Thanks for your question. The max Lifting capacity of our standard crane are up to 450 ton. If this can’t satisfy your working requirement. Please contact us for special customized.
5. The space of my workshop is limited, can the crane ok for mine?
Thanks for your question. For low headroom workshop, we have the Special products. The detail dimension please consult our professional engineer.
6. Can the crane work in hazardous environment?
Thanks for your question. This type product is just for application in general manufacturing workshop. For hazardous environment, please consult our professional sales manager.
7.Do your side can provide lift tools?
Thanks for your question. Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement's.
